Caiman
The preferred tool when machining 6000 and 7000 series aluminium.
QAlu

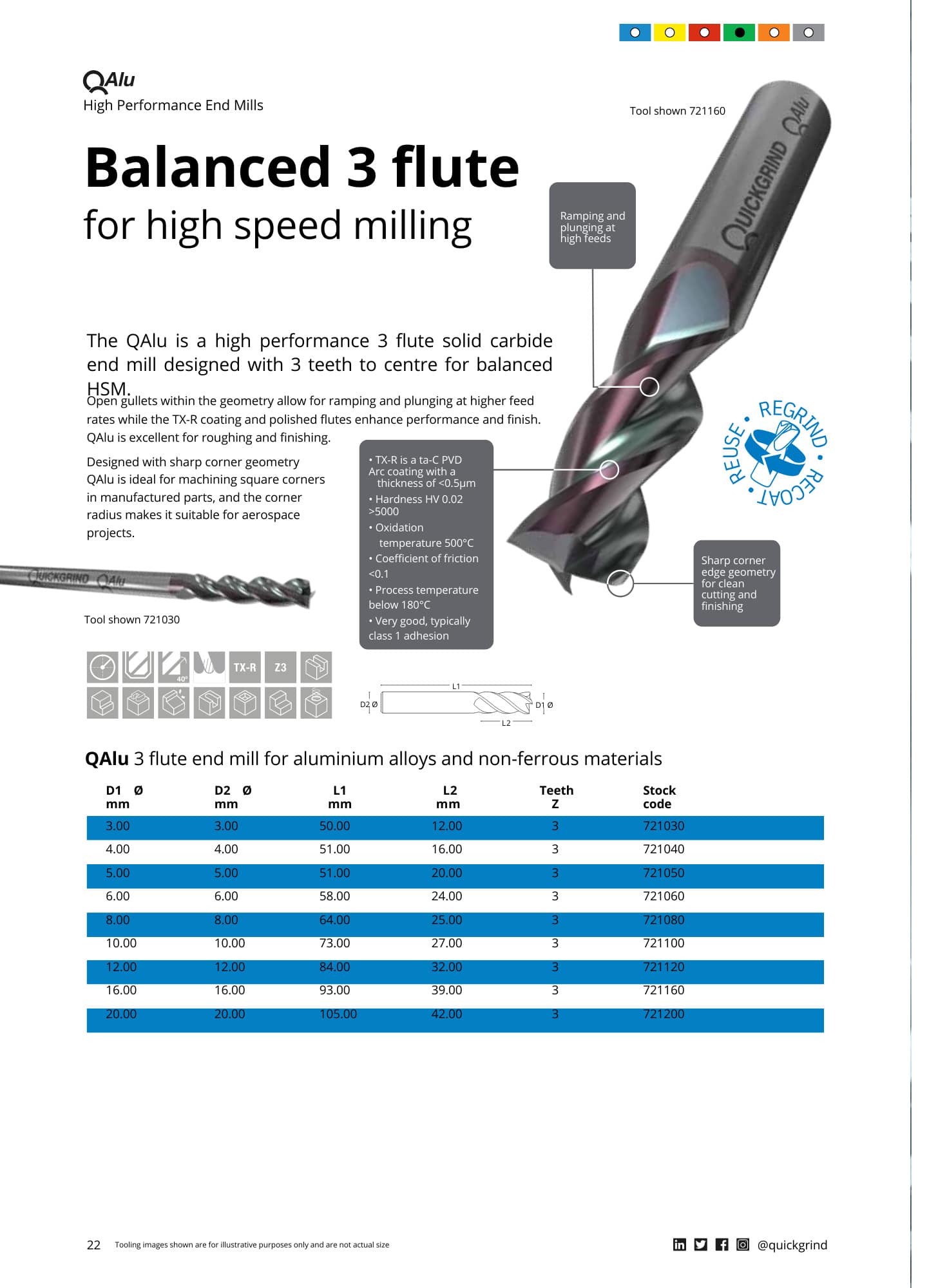

Balanced 3 flute for high speed milling. The QAlu is a high performance 3 flute solid carbide end mill designed with 3 teeth to centre for balanced HSM.
Features
Open gullets within the geometry allow for ramping and plunging at higher feed rates while the TX-R coating and polished flutes enhance performance and finish. QAlu is excellent for roughing and finishing.
Designed with sharp corner geometry QAlu is ideal for machining square corners in manufactured parts, and the corner radius makes it suitable for aerospace projects.
Benefits
- Ramping and plunging at high feeds
- Sharp corner edge geometry for clean cutting and finishing
- TX-R is a ta-C PVD Arc coating with a thickness of <0.5μm
- Hardness HV 0.02 >5000
- Oxidation temperature 500°C
- Coefficient of friction <0.1
Application
- Slotting
- Side Finishing
- Profile Milling
- Ramping
- Trochoidal Milling
- Pocket Milling
- Side Roughing
- Helical Milling
| EDP | D1 Ø | D2 Ø | L1 | L2 | Teeth | Coating | Price (Ex VAT) |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 721030 | 3.00 | 3.00 | 50.00 | 12.00 | 3 | TX-R | £34.33 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721040 | 4.00 | 4.00 | 51.00 | 16.00 | 3 | TX-R | £37.29 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721050 | 5.00 | 5.00 | 51.00 | 20.00 | 3 | TX-R | £41.67 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721060 | 6.00 | 6.00 | 58.00 | 24.00 | 3 | TX-R | £37.85 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721080 | 8.00 | 8.00 | 64.00 | 25.00 | 3 | TX-R | £53.93 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721100 | 10.00 | 10.00 | 73.00 | 27.00 | 3 | TX-R | £70.30 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721120 | 12.00 | 12.00 | 84.00 | 32.00 | 3 | TX-R | £90.48 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721160 | 16.00 | 16.00 | 93.00 | 39.00 | 3 | TX-R | £140.00 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
| 721200 | 20.00 | 20.00 | 105.00 | 42.00 | 3 | TX-R | £211.56 | SELECT | ||||||||||||||
Specification
|
||||||||||||||||||||||
D1 Ø
D2 Ø
D3 Ø
L1
L2
L3
Chamfer 45
R1
R2
R3
Square Corner
α/2
Geometry
Radial Cut
Teeth
Coating
EDP
EAN Barcode
EDP 721030
MORE- D1 Ø 3.00
- D2 Ø 3.00
- L1 50.00
- L2 12.00
- Teeth 3
- Coating TX-R
- EDP 721030
QAlu Carbide Tool 3 Flute 3mmx12mm with TX-R Coating.
Specification
- D1 Ø 3.00
- D2 Ø 3.00
- L1 50.00
- L2 12.00
- Teeth 3
- Coating TX-R
- EDP 721030
EDP 721040
MORE- D1 Ø 4.00
- D2 Ø 4.00
- L1 51.00
- L2 16.00
- Teeth 3
- Coating TX-R
- EDP 721040
QAlu Carbide Tool 3 Flute 4mmx16mm with TX-R Coating.
Specification
- D1 Ø 4.00
- D2 Ø 4.00
- L1 51.00
- L2 16.00
- Teeth 3
- Coating TX-R
- EDP 721040
EDP 721050
MORE- D1 Ø 5.00
- D2 Ø 5.00
- L1 51.00
- L2 20.00
- Teeth 3
- Coating TX-R
- EDP 721050
QAlu Carbide Tool 3 Flute 5mmx20mm with TX-R Coating.
Specification
- D1 Ø 5.00
- D2 Ø 5.00
- L1 51.00
- L2 20.00
- Teeth 3
- Coating TX-R
- EDP 721050
EDP 721060
MORE- D1 Ø 6.00
- D2 Ø 6.00
- L1 58.00
- L2 24.00
- Teeth 3
- Coating TX-R
- EDP 721060
QAlu Carbide Tool 3 Flute 6mmx24mm with TX-R Coating.
Specification
- D1 Ø 6.00
- D2 Ø 6.00
- L1 58.00
- L2 24.00
- Teeth 3
- Coating TX-R
- EDP 721060
EDP 721080
MORE- D1 Ø 8.00
- D2 Ø 8.00
- L1 64.00
- L2 25.00
- Teeth 3
- Coating TX-R
- EDP 721080
QAlu Carbide Tool 3 Flute 8mmx25mm with TX-R Coating.
Specification
- D1 Ø 8.00
- D2 Ø 8.00
- L1 64.00
- L2 25.00
- Teeth 3
- Coating TX-R
- EDP 721080
EDP 721100
MORE- D1 Ø 10.00
- D2 Ø 10.00
- L1 73.00
- L2 27.00
- Teeth 3
- Coating TX-R
- EDP 721100
QAlu Carbide Tool 3 Flute 10mmx27mm with TX-R Coating.
Specification
- D1 Ø 10.00
- D2 Ø 10.00
- L1 73.00
- L2 27.00
- Teeth 3
- Coating TX-R
- EDP 721100
EDP 721120
MORE- D1 Ø 12.00
- D2 Ø 12.00
- L1 84.00
- L2 32.00
- Teeth 3
- Coating TX-R
- EDP 721120
QAlu Carbide Tool 3 Flute 12mmx32mm with TX-R Coating.
Specification
- D1 Ø 12.00
- D2 Ø 12.00
- L1 84.00
- L2 32.00
- Teeth 3
- Coating TX-R
- EDP 721120
EDP 721160
MORE- D1 Ø 16.00
- D2 Ø 16.00
- L1 93.00
- L2 39.00
- Teeth 3
- Coating TX-R
- EDP 721160
QAlu Carbide Tool 3 Flute 16mmx39mm with TX-R Coating.
Specification
- D1 Ø 16.00
- D2 Ø 16.00
- L1 93.00
- L2 39.00
- Teeth 3
- Coating TX-R
- EDP 721160
EDP 721200
MORE- D1 Ø 20.00
- D2 Ø 20.00
- L1 105.00
- L2 42.00
- Teeth 3
- Coating TX-R
- EDP 721200
QAlu Carbide Tool 3 Flute 20mmx42mm with TX-R Coating.
Specification
- D1 Ø 20.00
- D2 Ø 20.00
- L1 105.00
- L2 42.00
- Teeth 3
- Coating TX-R
- EDP 721200
