QVari-CR QVari-CR

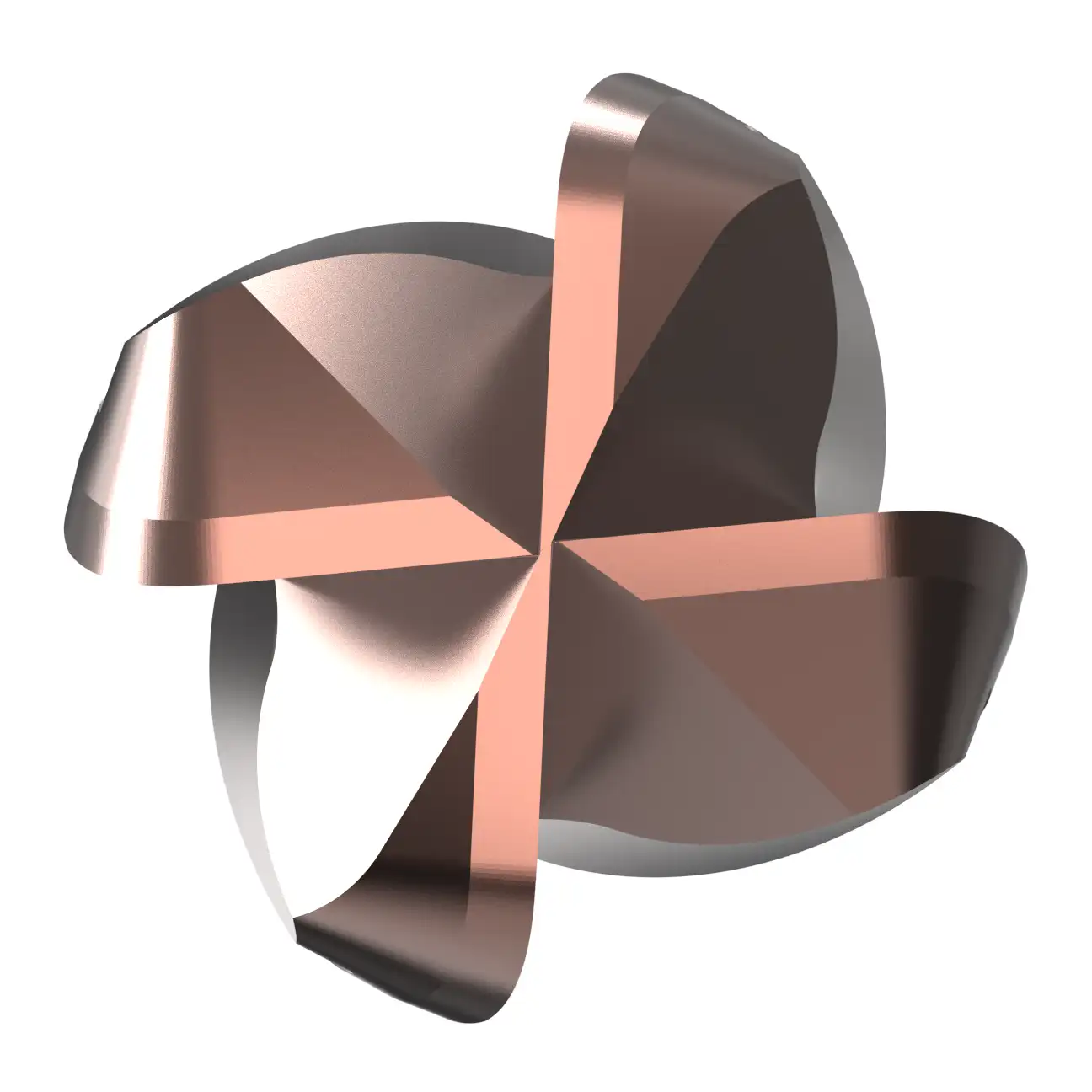

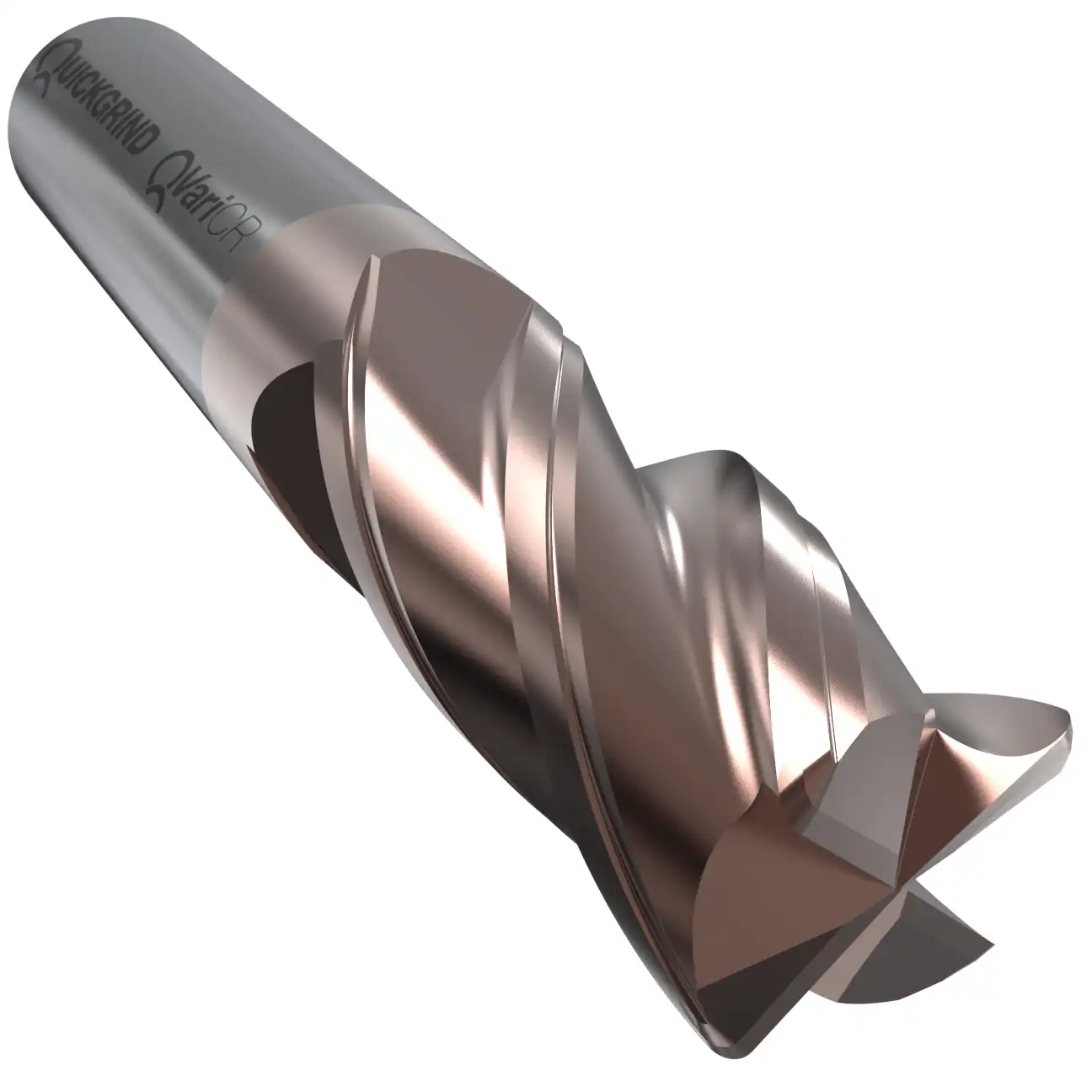

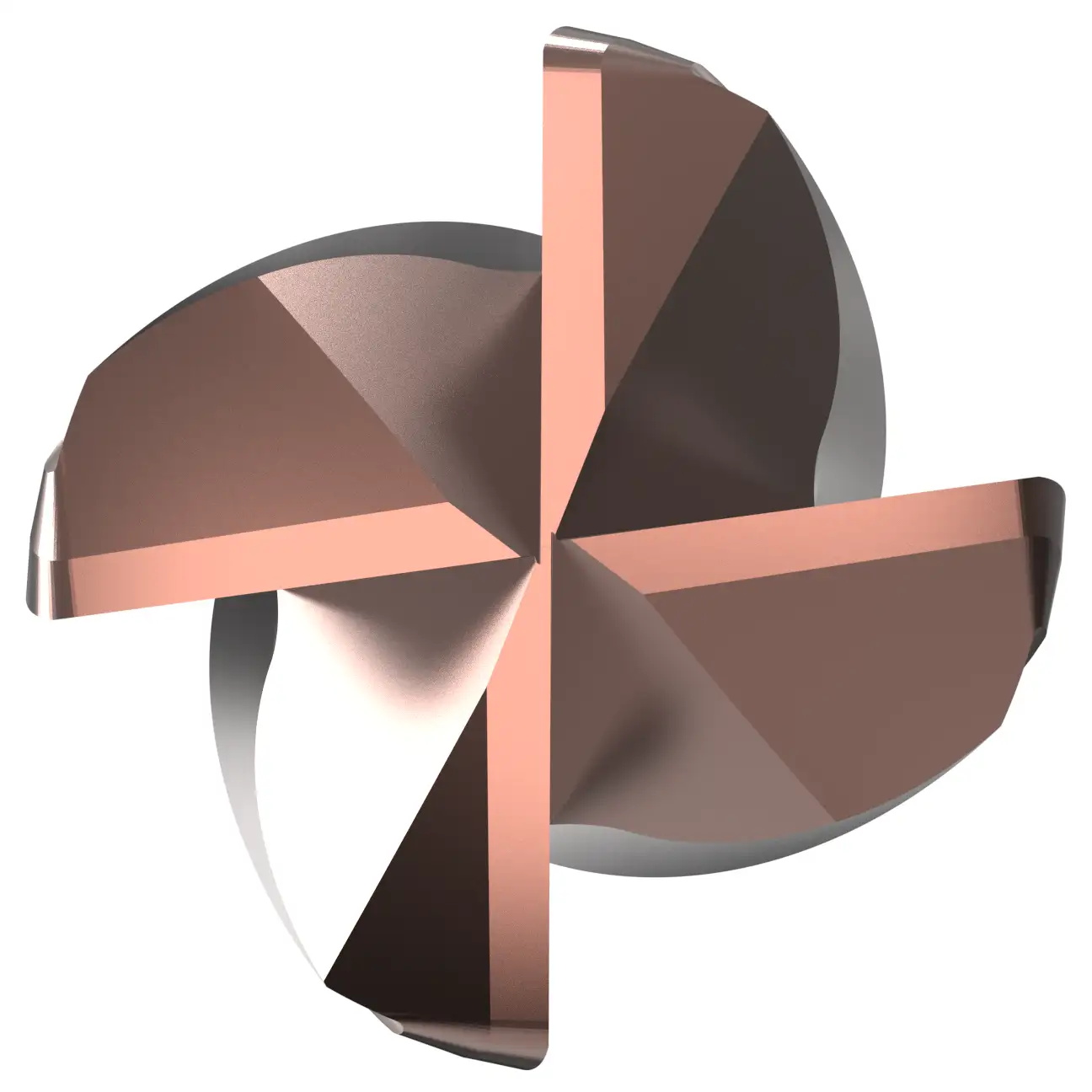

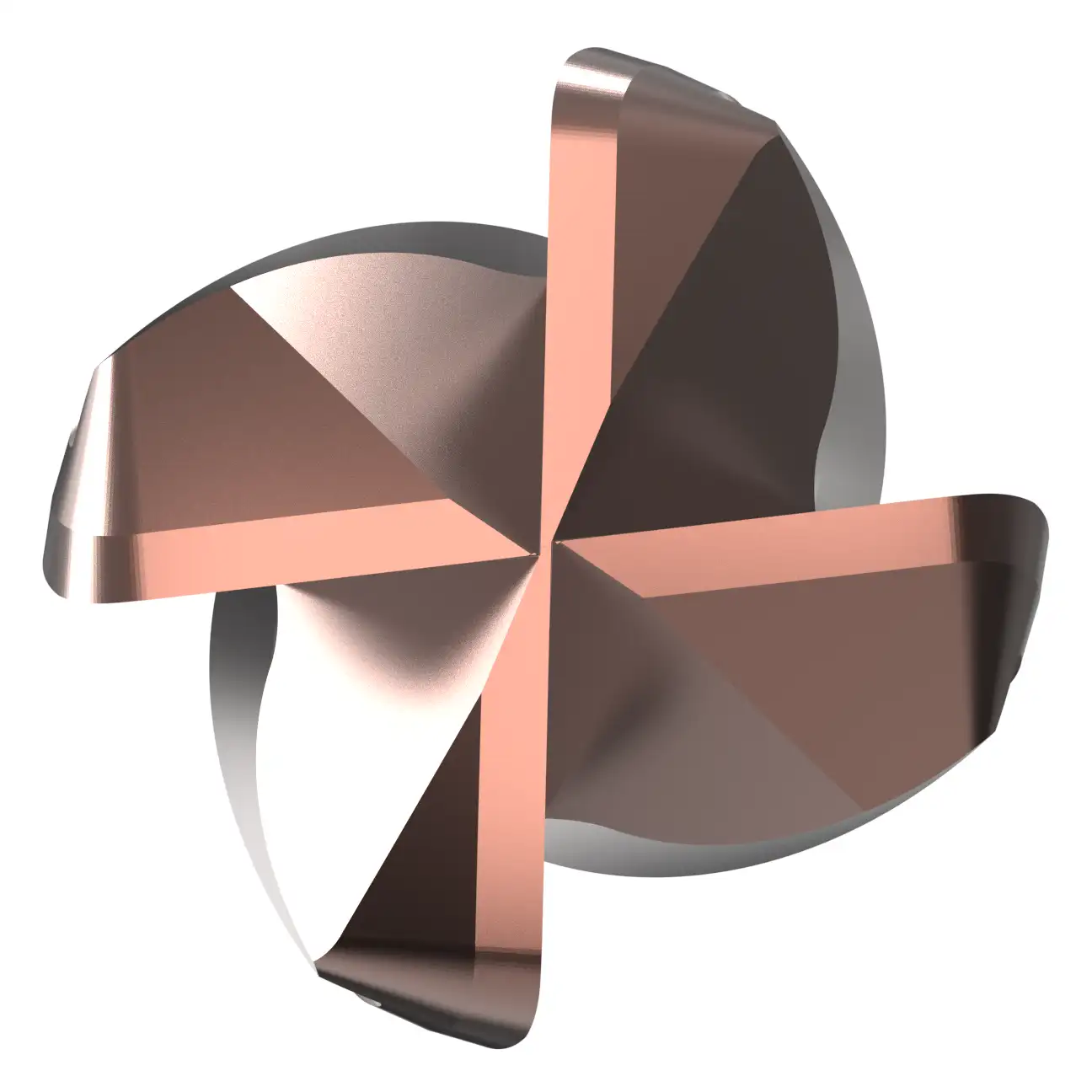

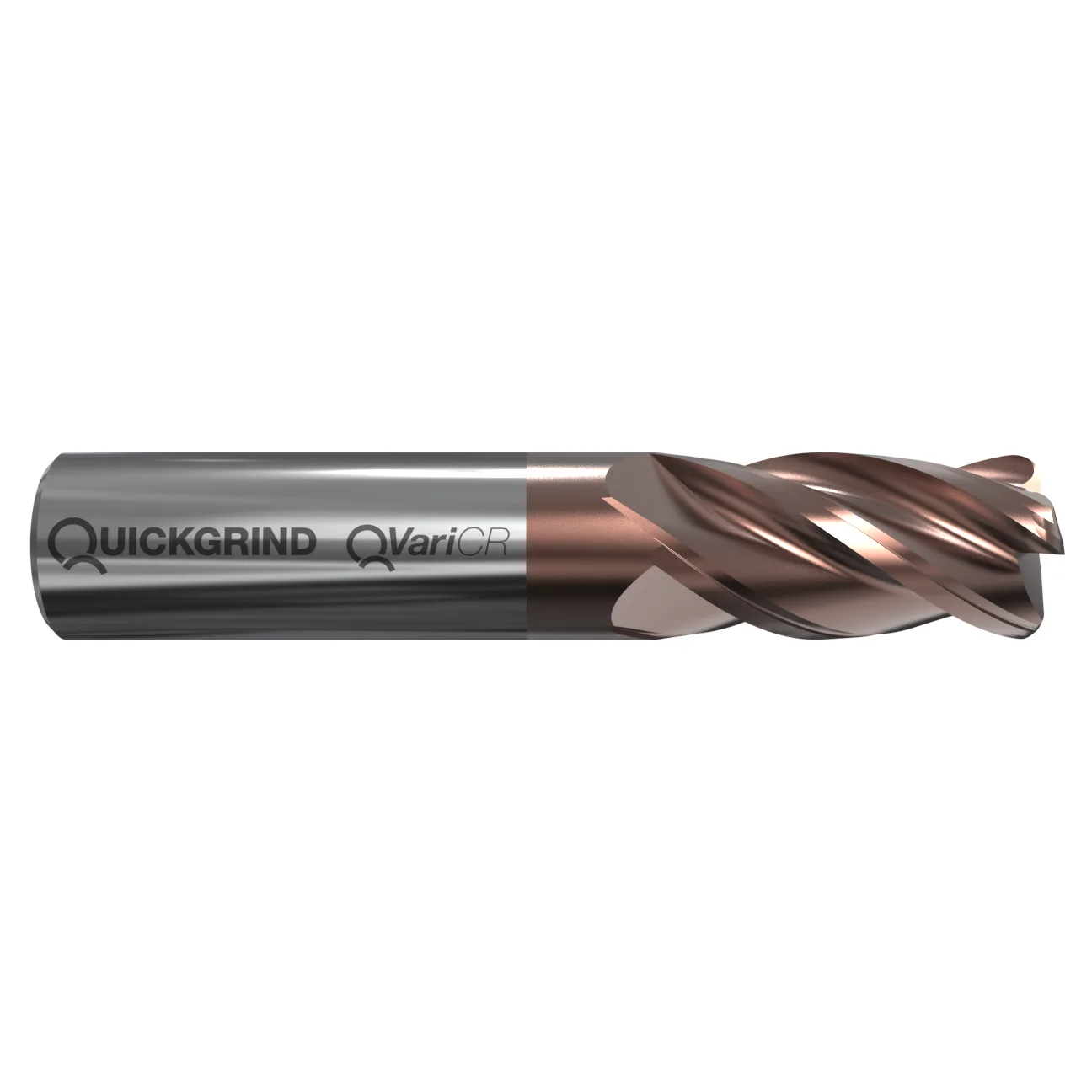

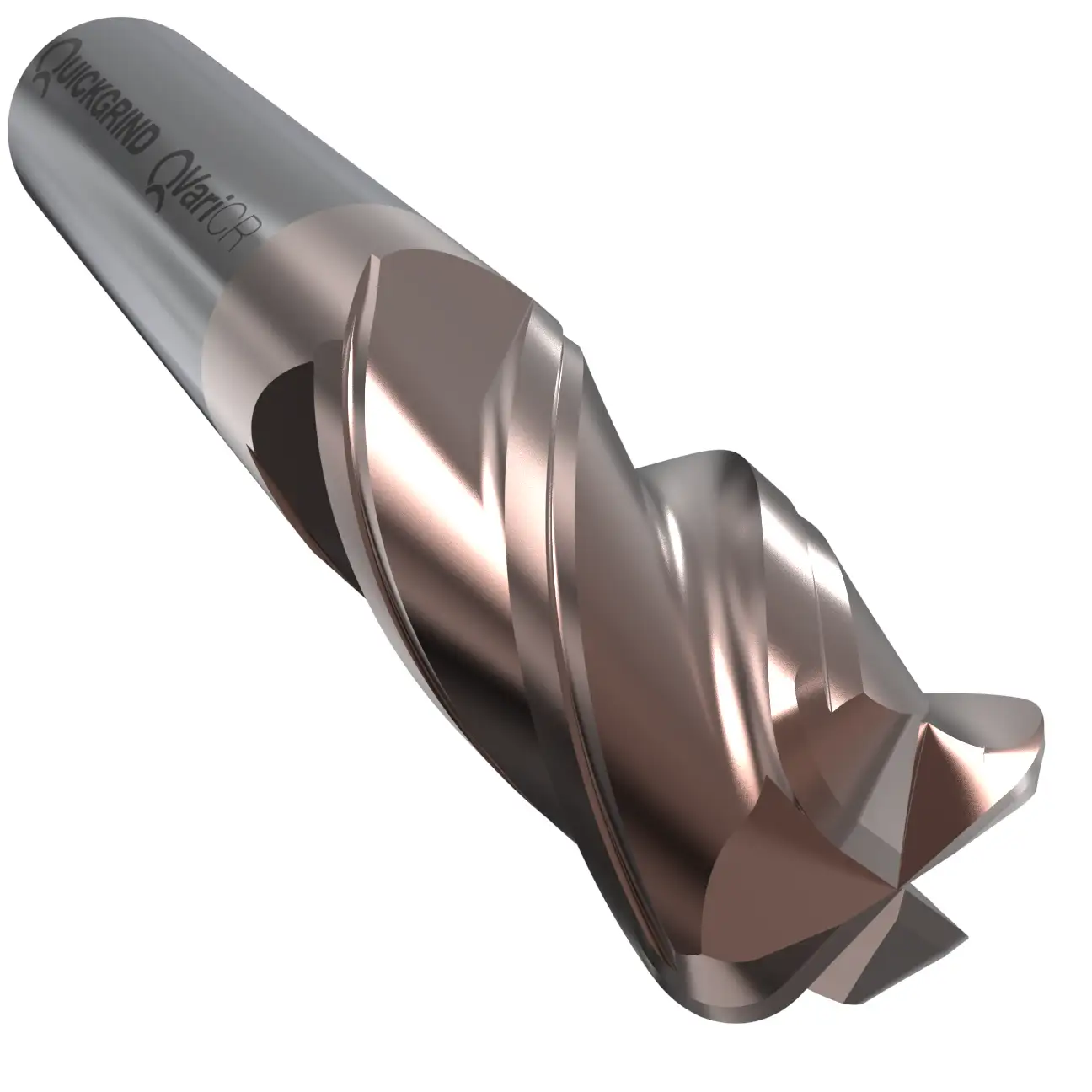

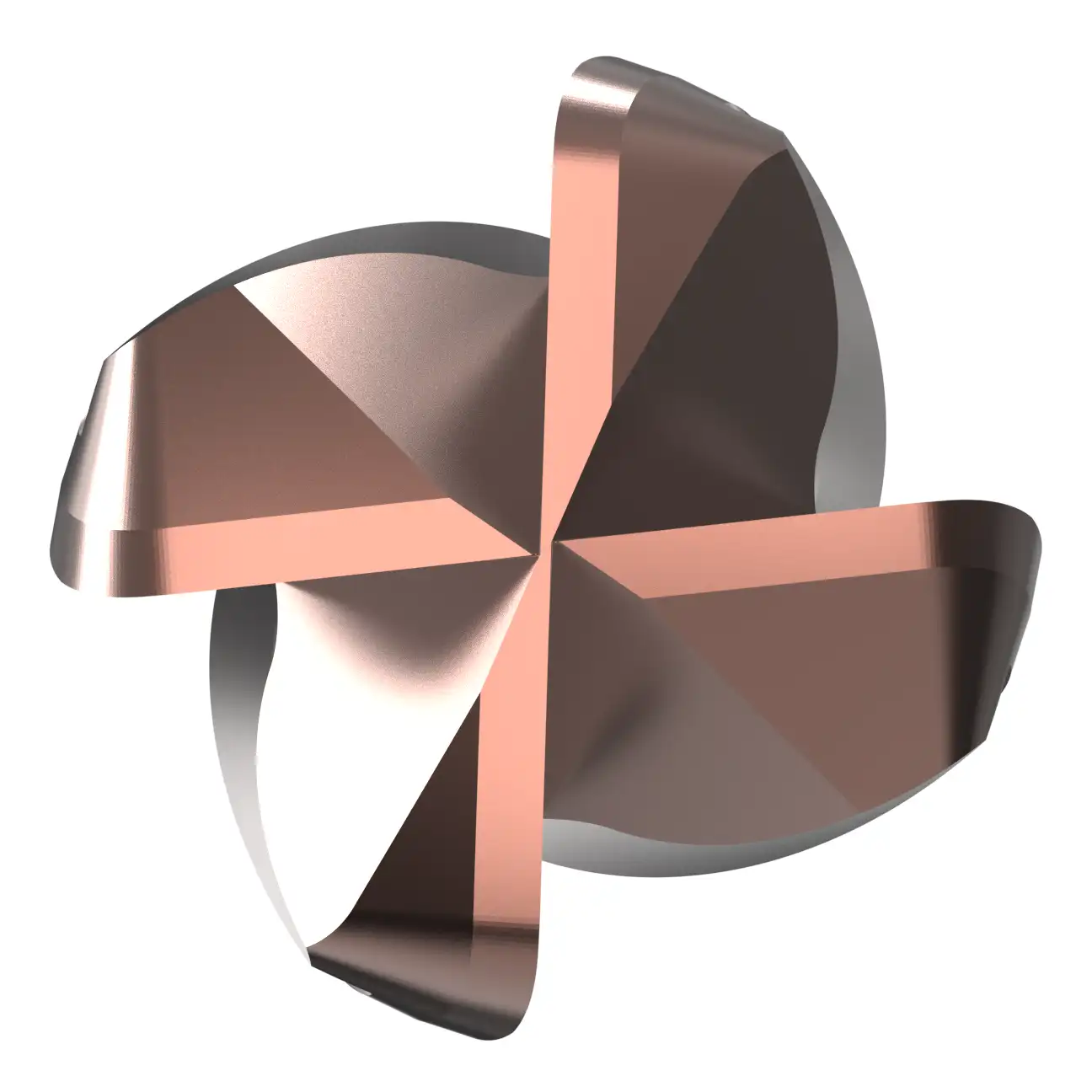

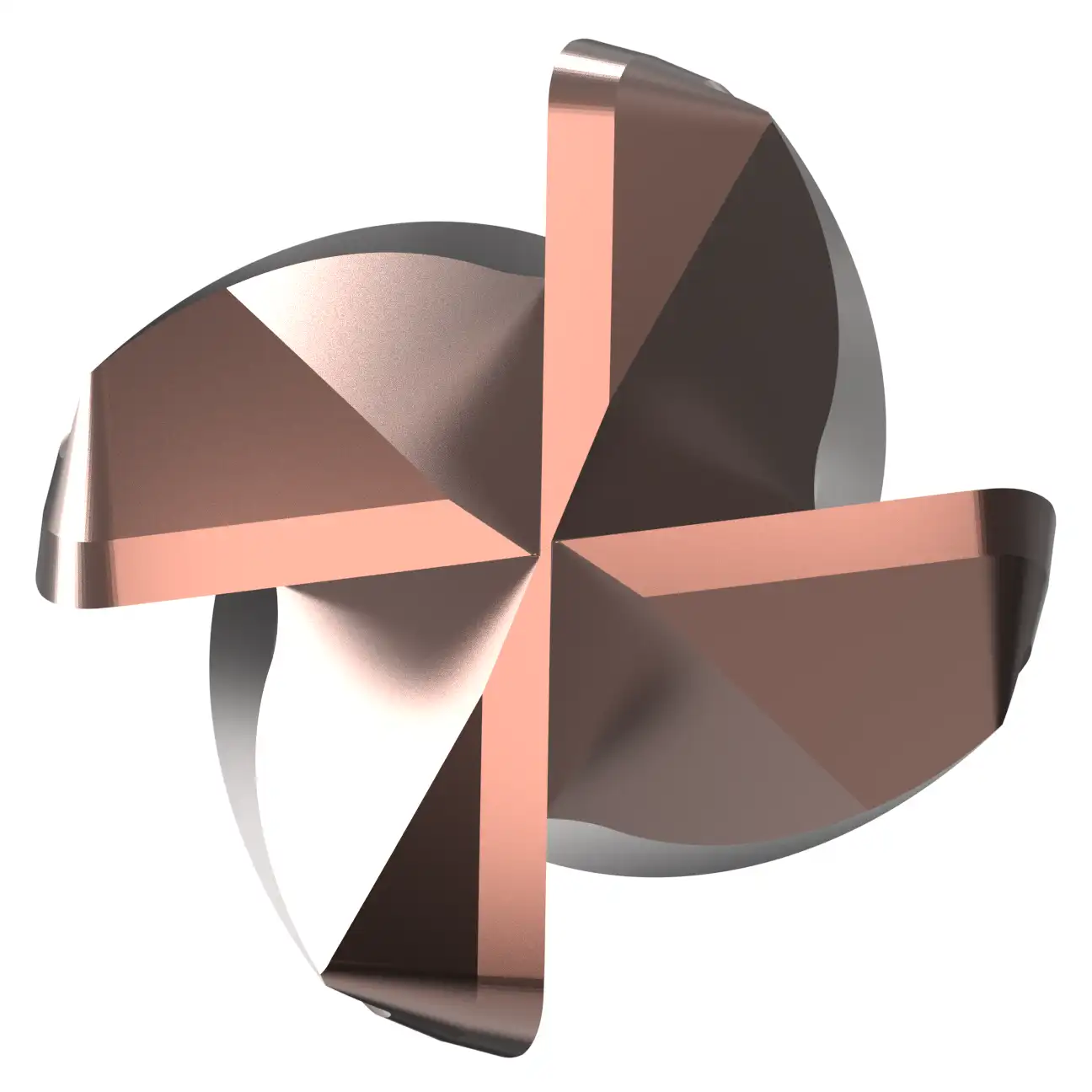

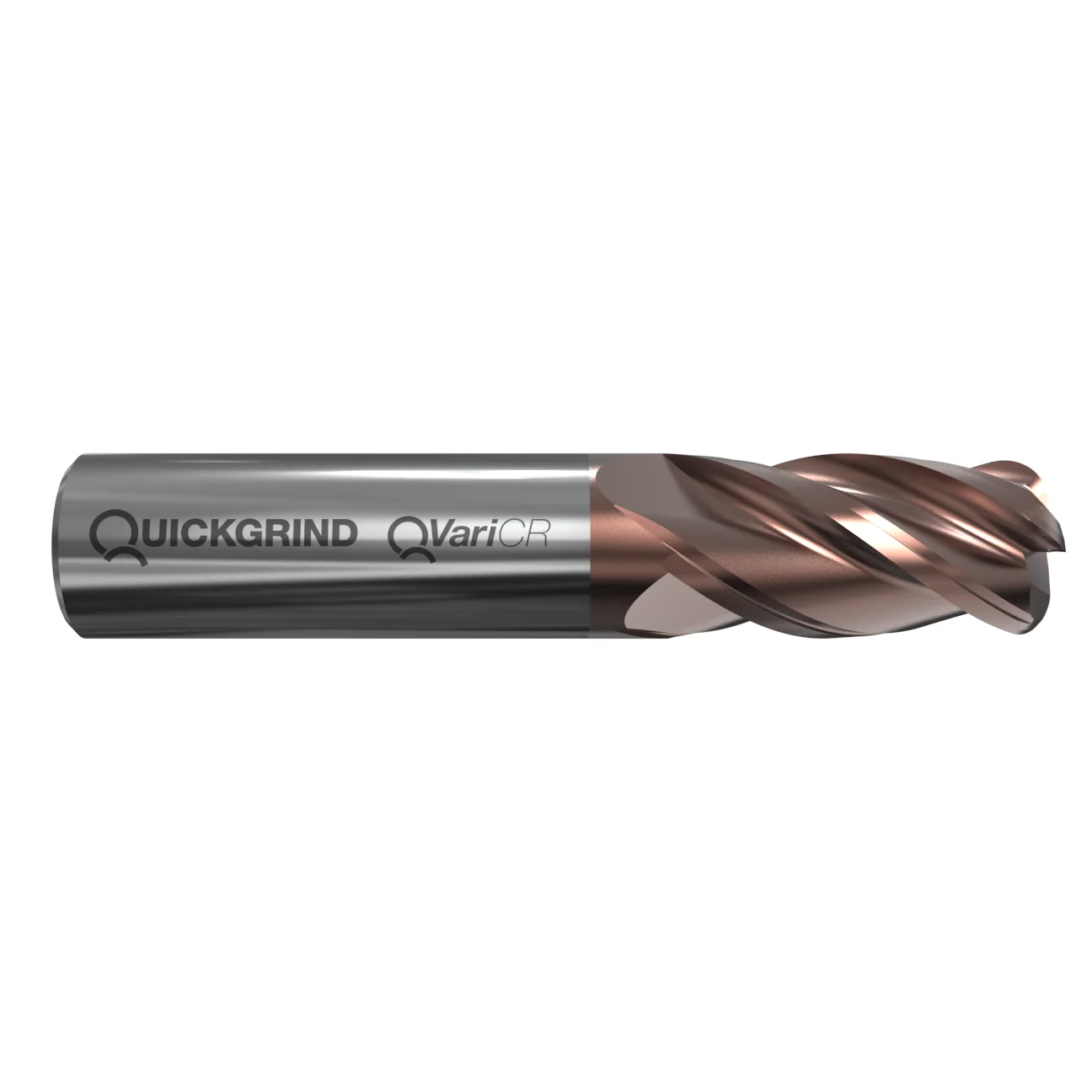

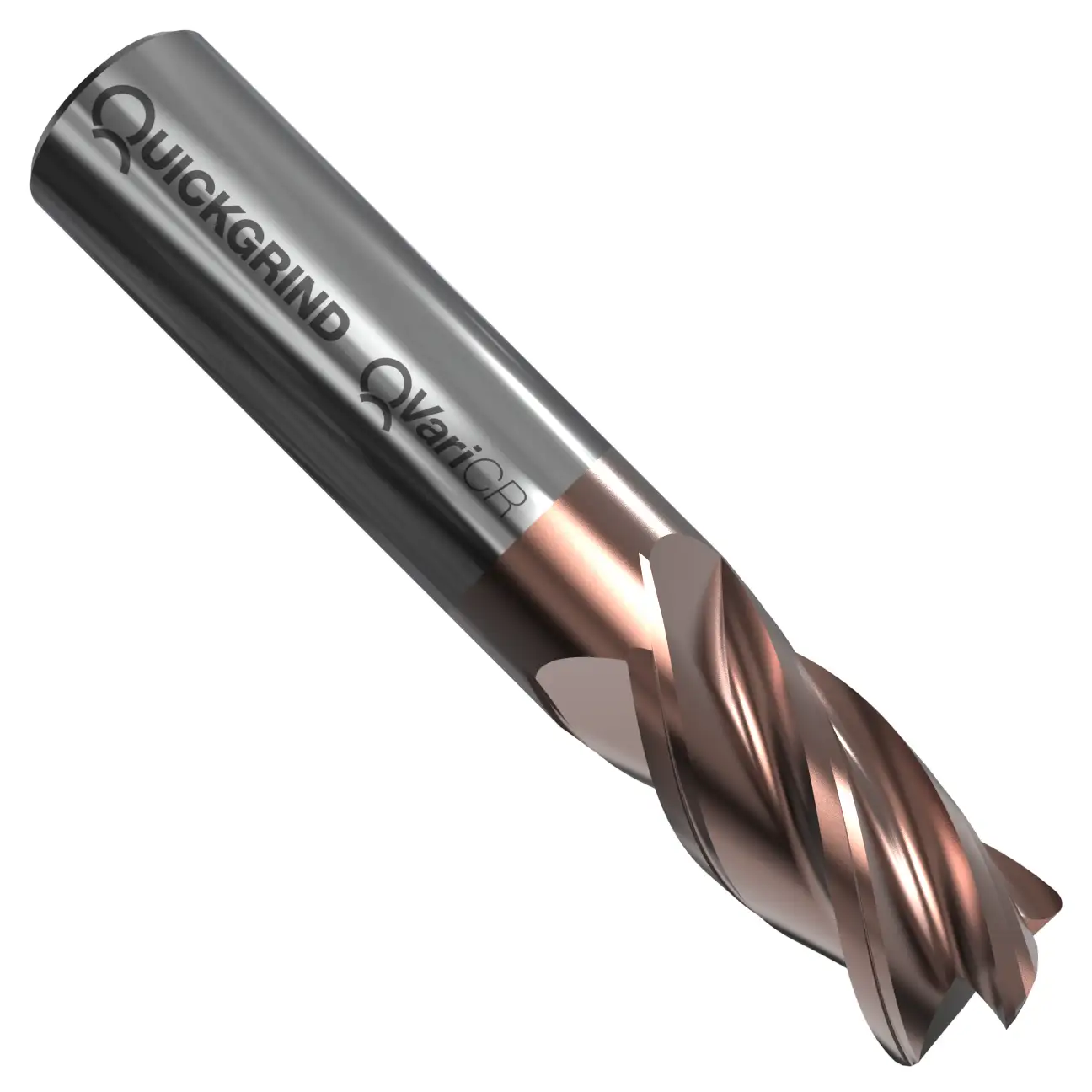

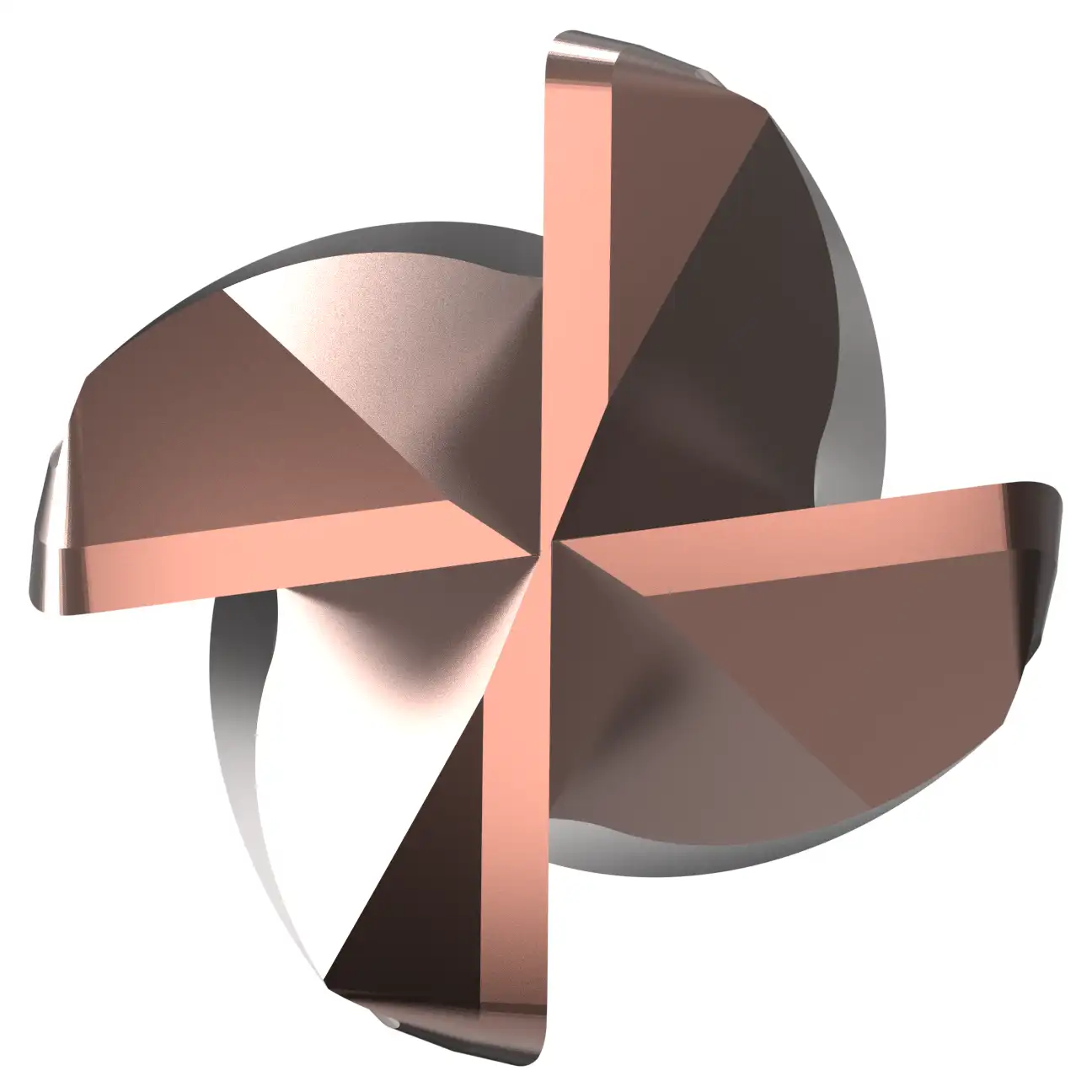

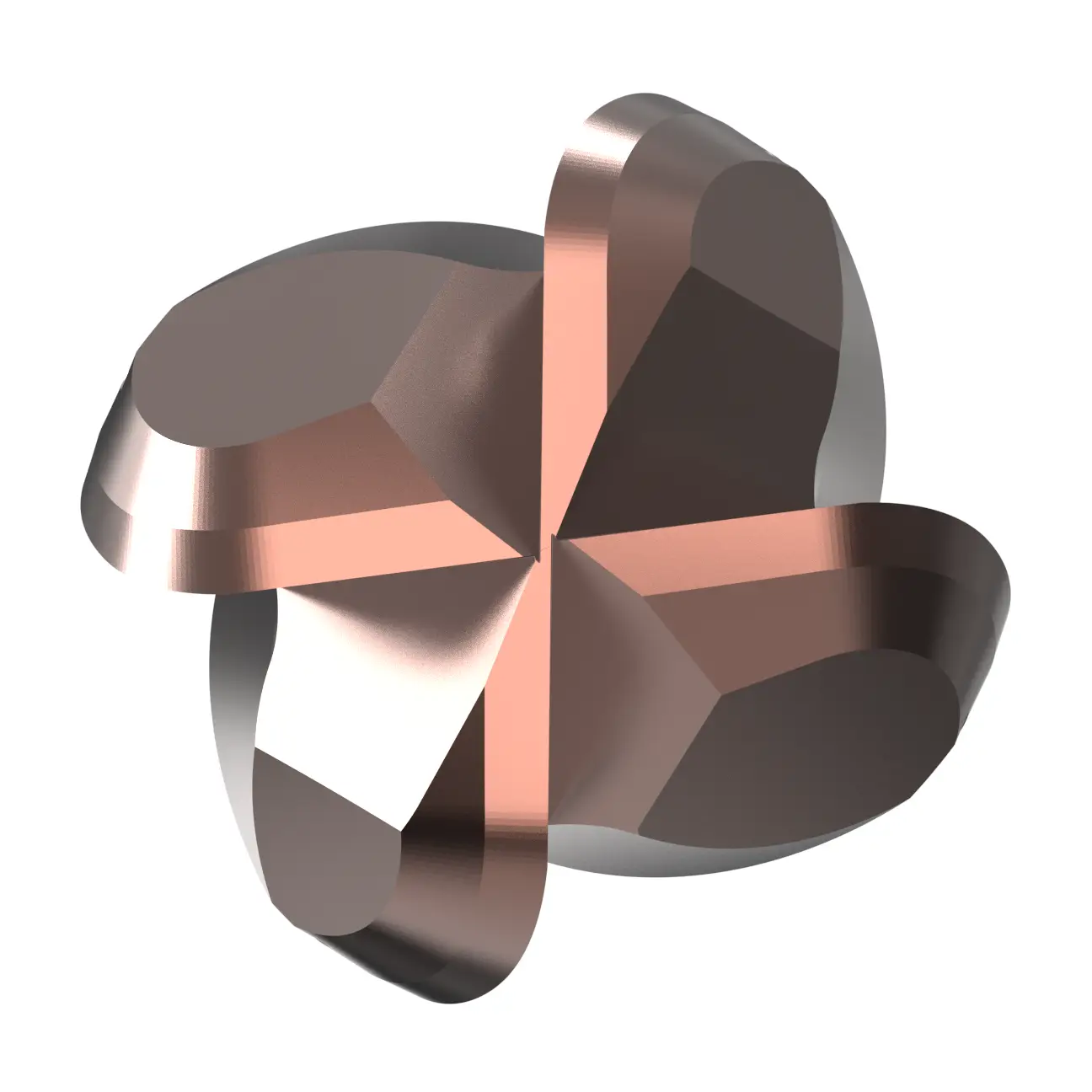

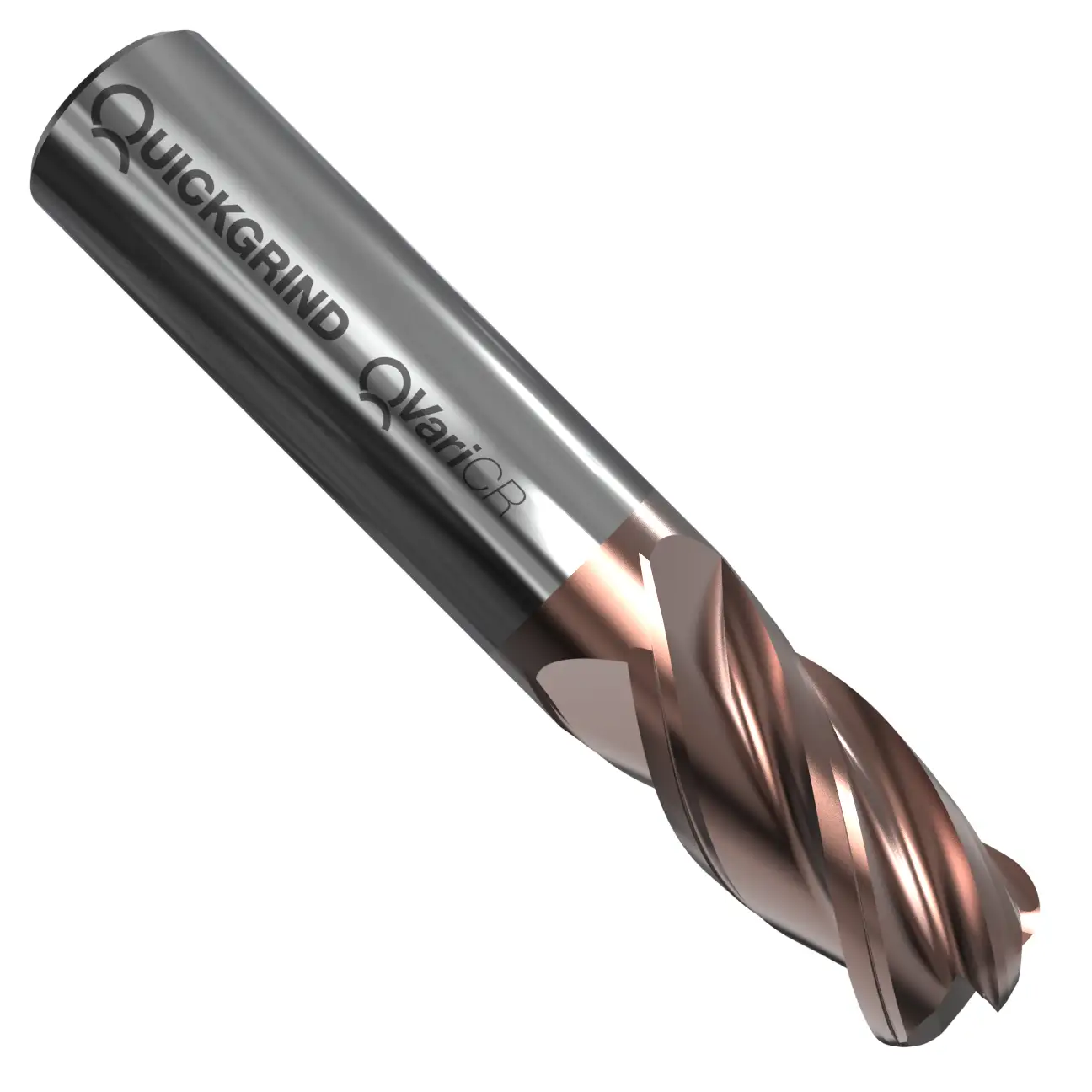

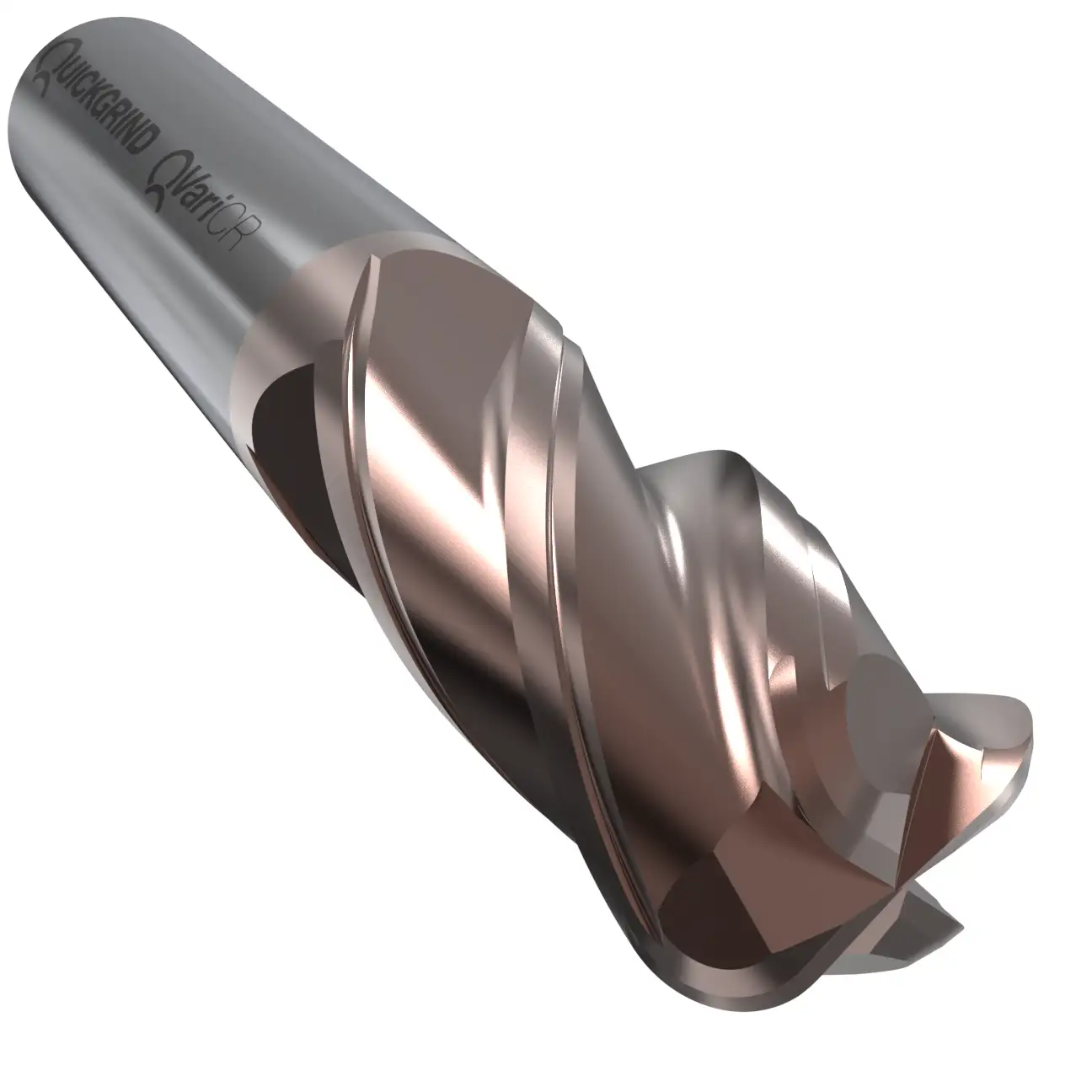

Conventional and trochoidal milling. The QVari-CR is a high performance 4 flute carbide end mill with corner radius.

QVari-CR

Features

The QVari-CR is a high performance 4 flute carbide end mill with corner radius, variable helix and index design, making it suitable for both roughing and finishing, where applicable, with one tool.

The XRed coating enhances tool life and makes this tool suitable for steels, stainless steels and exotic alloys. QVari-CR can be used in both conventional and trochoidal machining strategies, while the variable corner radius sizes make it very popular within the aerospace industry, or other applications when there is a corner radius requirement.

Benefits

  • Higher feeds & speeds
  • Higher wear resistance
  • Vibration suppression
  • Increased material removal rates
  • Efficient chip removal
  • Low cutting forces
  • Excellent finish
  • Can be remanufactured many times
  • High rigidity

Application

  • Slotting
  • Side Finishing
  • Profile Milling
  • Ramping
  • Trochoidal Milling
  • Pocket Milling
  • Side Roughing
  • 3D Milling
  • Helical Milling
  • P
  • M
  • K
  • N
  • S
  • H

DOWNLOAD BROCHURE

For more information about QVari-CR download our brochure.
DOWNLOAD BROCHURE
EDP D1 Ø D2 Ø D3 Ø L1 L2 L3 R1 Teeth Coating Price
(Ex VAT)

670030 3.00 6.00 2.90 58.00 8.00 14.00 0.50 4 XRed £41.57 SELECT
670031 3.00 6.00 2.90 58.00 8.00 14.00 1.00 4 XRed £41.57 SELECT
670040 4.00 6.00 3.90 58.00 11.00 16.00 0.50 4 XRed £40.98 SELECT
670041 4.00 6.00 3.90 58.00 11.00 16.00 1.00 4 XRed £40.98 SELECT
670050 5.00 6.00 4.90 58.00 13.00 18.00 0.50 4 XRed £40.98 SELECT
670051 5.00 6.00 4.90 58.00 13.00 18.00 1.00 4 XRed £40.98 SELECT
670060 6.00 6.00 58.00 15.00 0.50 4 XRed £36.27 SELECT
670061 6.00 6.00 58.00 15.00 0.80 4 XRed £36.27 SELECT
670062 6.00 6.00 58.00 15.00 1.00 4 XRed £36.27 SELECT
670063 6.00 6.00 58.00 15.00 1.20 4 XRed £36.27 SELECT
670064 6.00 6.00 58.00 15.00 1.50 4 XRed £36.27 SELECT
670065 6.00 6.00 58.00 15.00 2.00 4 XRed £36.27 SELECT
670080 8.00 8.00 64.00 22.00 0.50 4 XRed £50.00 SELECT
670081 8.00 8.00 64.00 22.00 0.80 4 XRed £50.00 SELECT
670082 8.00 8.00 64.00 22.00 1.00 4 XRed £50.00 SELECT
670083 8.00 8.00 64.00 22.00 1.20 4 XRed £50.00 SELECT
670084 8.00 8.00 64.00 22.00 1.50 4 XRed £50.00 SELECT
670085 8.00 8.00 64.00 22.00 2.00 4 XRed £50.00 SELECT
670086 8.00 8.00 64.00 22.00 2.50 4 XRed £50.00 SELECT
670087 8.00 8.00 64.00 22.00 3.00 4 XRed £50.00 SELECT
670100 10.00 10.00 73.00 25.00 0.50 4 XRed £60.48 SELECT
670101 10.00 10.00 73.00 25.00 0.80 4 XRed £60.48 SELECT
670102 10.00 10.00 73.00 25.00 1.00 4 XRed £60.48 SELECT
670103 10.00 10.00 73.00 25.00 1.20 4 XRed £60.48 SELECT
670104 10.00 10.00 73.00 25.00 1.50 4 XRed £60.48 SELECT
670105 10.00 10.00 73.00 25.00 2.00 4 XRed £60.48 SELECT
670106 10.00 10.00 73.00 25.00 2.50 4 XRed £60.48 SELECT
670107 10.00 10.00 73.00 25.00 3.00 4 XRed £60.48 SELECT
670120 12.00 12.00 84.00 28.00 0.50 4 XRed £78.06 SELECT
670121 12.00 12.00 84.00 28.00 0.80 4 XRed £78.06 SELECT
670122 12.00 12.00 84.00 28.00 1.00 4 XRed £78.06 SELECT
670123 12.00 12.00 84.00 28.00 1.20 4 XRed £78.06 SELECT
670124 12.00 12.00 84.00 28.00 1.50 4 XRed £78.06 SELECT
670125 12.00 12.00 84.00 28.00 2.00 4 XRed £78.06 SELECT
670126 12.00 12.00 84.00 28.00 2.50 4 XRed £78.06 SELECT
670127 12.00 12.00 84.00 28.00 3.00 4 XRed £78.06 SELECT
670160 16.00 16.00 93.00 35.00 0.50 4 XRed £110.75 SELECT
670161 16.00 16.00 93.00 35.00 0.80 4 XRed £110.75 SELECT
670162 16.00 16.00 93.00 35.00 1.00 4 XRed £110.75 SELECT
670163 16.00 16.00 93.00 35.00 1.20 4 XRed £110.75 SELECT
670164 16.00 16.00 93.00 35.00 1.50 4 XRed £110.75 SELECT
670165 16.00 16.00 93.00 35.00 2.00 4 XRed £110.75 SELECT
670166 16.00 16.00 93.00 35.00 2.50 4 XRed £110.75 SELECT
670167 16.00 16.00 93.00 35.00 3.00 4 XRed £110.75 SELECT
670200 20.00 20.00 105.00 40.00 0.50 4 XRed £160.82 SELECT
670201 20.00 20.00 105.00 40.00 0.80 4 XRed £160.82 SELECT
670202 20.00 20.00 105.00 40.00 1.00 4 XRed £160.82 SELECT
670203 20.00 20.00 105.00 40.00 1.20 4 XRed £160.82 SELECT
670204 20.00 20.00 105.00 40.00 1.50 4 XRed £160.82 SELECT
670205 20.00 20.00 105.00 40.00 2.00 4 XRed £160.82 SELECT
