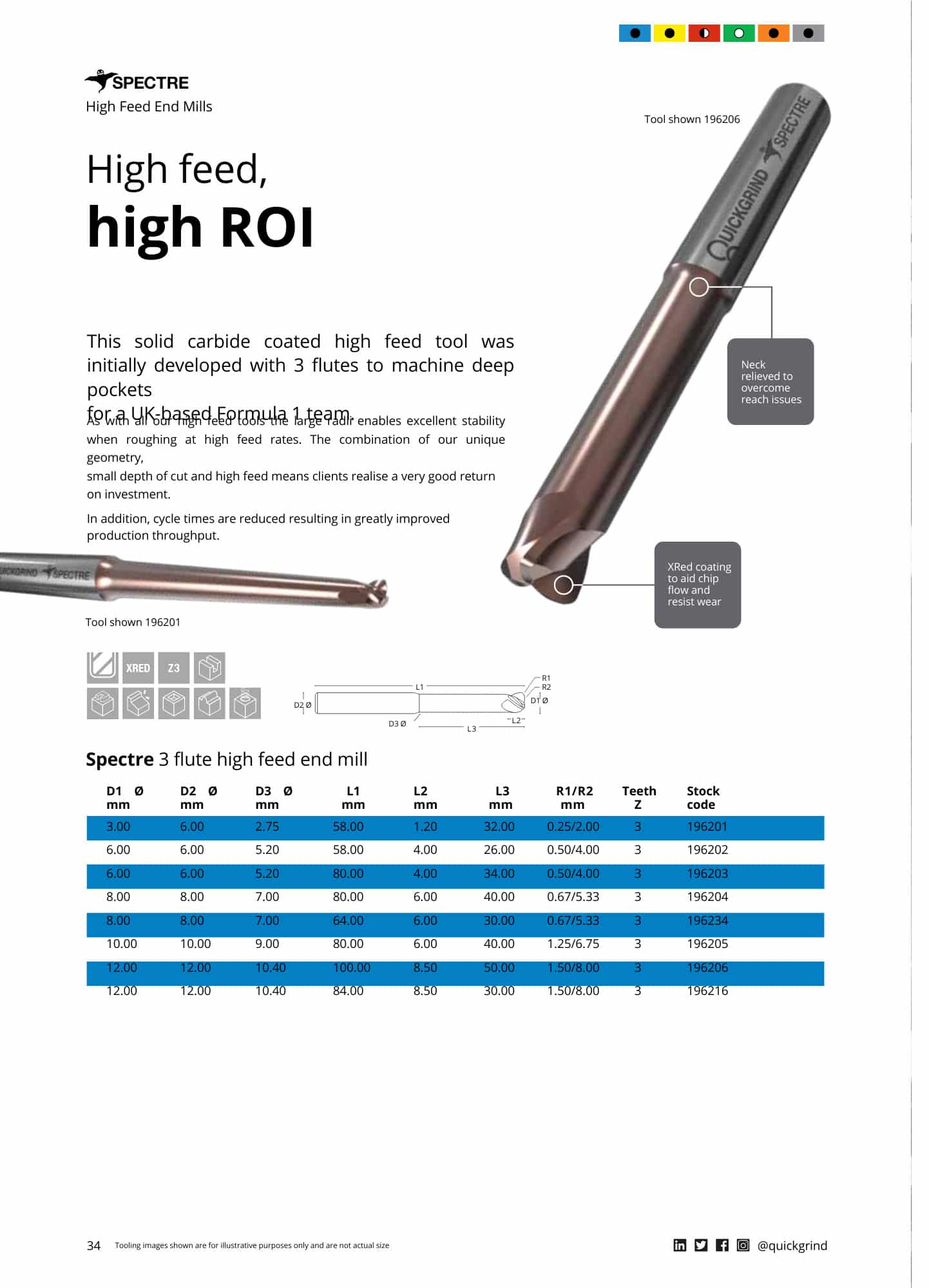

3D Tool pdf
QUICK VIEW
Phantom
Phantom is a 4 flute that performs like a 16…
Spectre
High feed, high ROI. High feed 3 flute excellent end mill. Designed for Formula 1.
Features
This solid carbide coated high feed tool was initially developed with 3 flutes to machine deep pockets for a UK-based Formula 1 team.
As with all our high feed tools the large radii enables excellent stability when roughing at high feed rates. The combination of our unique geometry, small depth of cut and high feed means clients realise a very good return on investment.
In addition, cycle times are reduced resulting in greatly improved production throughput.
Benefits
- Force-resistive submicrograin carbide for strength and toughness.
- Neck relieved to overcome reach issues.
- Neck lengths to suit your application. 2.00mm Ø with 80.00mm reach.
- Coating options to aid chip flow and wear resistance.
- DIN or other shank standards as required.
- Unique end geometries – 2 flutes and more.
- Ideal for extended reach in deep cavities.
Applications
- Slotting
- Profile Milling
- Ramping
- Pocket Milling
- 3D Milling
- Helical Milling
| EDP | D1 Ø | D2 Ø | D3 Ø | L1 | L2 | L3 | R1 | Teeth | Coating | Price (Ex VAT) |
|||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 196201 | 3.00 | 6.00 | 2.75 | 58.00 | 1.20 | 32.00 | 0.25/2.00 | 3 | XRed | £57.15 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
| 196202 | 6.00 | 6.00 | 5.20 | 58.00 | 4.00 | 26.00 | 0.50/4.00 | 3 | XRed | £60.81 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
| 196203 | 6.00 | 6.00 | 5.20 | 80.00 | 4.00 | 34.00 | 0.50/4.00 | 3 | XRed | £67.73 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
| 196204 | 8.00 | 8.00 | 7.00 | 80.00 | 6.00 | 40.00 | 0.67/5.33 | 3 | XRed | £82.68 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
| 196234 | 8.00 | 8.00 | 7.00 | 64.00 | 6.00 | 30.00 | 0.67/5.33 | 3 | XRed | £97.18 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
| 196205 | 10.00 | 10.00 | 9.00 | 80.00 | 6.00 | 40.00 | 1.25/6.75 | 3 | XRed | £111.75 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
| 196206 | 12.00 | 12.00 | 10.40 | 100.00 | 8.50 | 50.00 | 1.50/8.00 | 3 | XRed | £136.96 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
| 196216 | 12.00 | 12.00 | 10.40 | 84.00 | 8.50 | 30.00 | 1.50/8.00 | 3 | XRed | £127.38 | SELECT | ||||||||||||||||||||
Specification
|
|||||||||||||||||||||||||||||||
D1 Ø
D2 Ø
D3 Ø
L1
L2
L3
Chamfer 45
R1
R2
R3
Square Corner
α/2
Geometry
Radial Cut
Teeth
Coating
EDP
EAN Barcode
EDP 196201
MORE- D1 Ø 3.00
- D2 Ø 6.00
- D3 Ø 2.75
- L1 58.00
- L2 1.20
- L3 32.00
- R1 0.25/2.00
- Teeth 3
- Coating XRed
- EDP 196201
Spectre Carbide Tool 3 Flute 3mmx1.2mmx32mmxR0.25/2.00mm with XRed Coating
Specification
- D1 Ø 3.00
- D2 Ø 6.00
- D3 Ø 2.75
- L1 58.00
- L2 1.20
- L3 32.00
- R1 0.25/2.00
- Teeth 3
- Coating XRed
- EDP 196201
EDP 196202
MORE- D1 Ø 6.00
- D2 Ø 6.00
- D3 Ø 5.20
- L1 58.00
- L2 4.00
- L3 26.00
- R1 0.50/4.00
- Teeth 3
- Coating XRed
- EDP 196202
Spectre Carbide Tool 3 Flute 6mmx4mmx26mmxR0.50/4.00mm with XRed Coating
Specification
- D1 Ø 6.00
- D2 Ø 6.00
- D3 Ø 5.20
- L1 58.00
- L2 4.00
- L3 26.00
- R1 0.50/4.00
- Teeth 3
- Coating XRed
- EDP 196202
EDP 196203
MORE- D1 Ø 6.00
- D2 Ø 6.00
- D3 Ø 5.20
- L1 80.00
- L2 4.00
- L3 34.00
- R1 0.50/4.00
- Teeth 3
- Coating XRed
- EDP 196203
Spectre Carbide Tool 3 Flute 6mmx4mmx34mmxR0.50/4.00mm with XRed Coating
Specification
- D1 Ø 6.00
- D2 Ø 6.00
- D3 Ø 5.20
- L1 80.00
- L2 4.00
- L3 34.00
- R1 0.50/4.00
- Teeth 3
- Coating XRed
- EDP 196203
EDP 196204
MORE- D1 Ø 8.00
- D2 Ø 8.00
- D3 Ø 7.00
- L1 80.00
- L2 6.00
- L3 40.00
- R1 0.67/5.33
- Teeth 3
- Coating XRed
- EDP 196204
Spectre Carbide Tool 3 Flute 8mmx6mmx40mmxR0.67/5.33mm with XRed Coating
Specification
- D1 Ø 8.00
- D2 Ø 8.00
- D3 Ø 7.00
- L1 80.00
- L2 6.00
- L3 40.00
- R1 0.67/5.33
- Teeth 3
- Coating XRed
- EDP 196204
EDP 196234
MORE- D1 Ø 8.00
- D2 Ø 8.00
- D3 Ø 7.00
- L1 64.00
- L2 6.00
- L3 30.00
- R1 0.67/5.33
- Teeth 3
- Coating XRed
- EDP 196234
Spectre Carbide Tool 3 Flute 8mmx6mmx30mmxR0.67/5.33mm with XRed Coating
Specification
- D1 Ø 8.00
- D2 Ø 8.00
- D3 Ø 7.00
- L1 64.00
- L2 6.00
- L3 30.00
- R1 0.67/5.33
- Teeth 3
- Coating XRed
- EDP 196234
EDP 196205
MORE- D1 Ø 10.00
- D2 Ø 10.00
- D3 Ø 9.00
- L1 80.00
- L2 6.00
- L3 40.00
- R1 1.25/6.75
- Teeth 3
- Coating XRed
- EDP 196205
Spectre Carbide Tool 3 Flute 10mmx6mmx40mmxR1.25/6.75mm with XRed Coating
Specification
- D1 Ø 10.00
- D2 Ø 10.00
- D3 Ø 9.00
- L1 80.00
- L2 6.00
- L3 40.00
- R1 1.25/6.75
- Teeth 3
- Coating XRed
- EDP 196205
EDP 196206
MORE- D1 Ø 12.00
- D2 Ø 12.00
- D3 Ø 10.40
- L1 100.00
- L2 8.50
- L3 50.00
- R1 1.50/8.00
- Teeth 3
- Coating XRed
- EDP 196206
Spectre Carbide Tool 3 Flute 12mmx8.5mmx50mmxR1.50/8.00mm with XRed Coating
Specification
- D1 Ø 12.00
- D2 Ø 12.00
- D3 Ø 10.40
- L1 100.00
- L2 8.50
- L3 50.00
- R1 1.50/8.00
- Teeth 3
- Coating XRed
- EDP 196206
EDP 196216
MORE- D1 Ø 12.00
- D2 Ø 12.00
- D3 Ø 10.40
- L1 84.00
- L2 8.50
- L3 30.00
- R1 1.50/8.00
- Teeth 3
- Coating XRed
- EDP 196216
Spectre Carbide Tool 3 Flute 12mmx8.5mmx30mmxR1.50/8.00mm with XRed Coating
Specification
- D1 Ø 12.00
- D2 Ø 12.00
- D3 Ø 10.40
- L1 84.00
- L2 8.50
- L3 30.00
- R1 1.50/8.00
- Teeth 3
- Coating XRed
- EDP 196216
Create the perfect tool for your job
Can’t find what you need in our standard Spectre range? Simply provide your tool specification here and we will provide you with a quotation*
*Minimum of three order quantity
What happens next?
Once you submit your tool specification, our team will review and supply a quotation via email for the quantity specified.
From approval of your order, dispatch is usually 2 to 3 weeks, with a priority service available at extra charge.
